Product Details

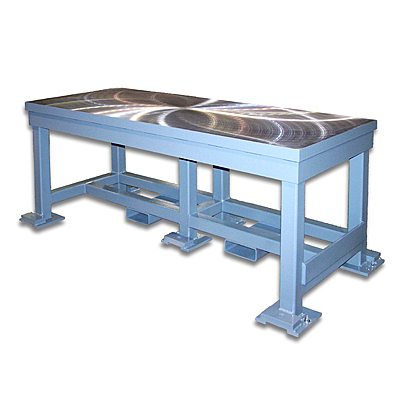

The B-300 base is for applications that demand maximum strength.
- Standard models B-300 with legs or B-300-T without legs
- Standard sizes are 24″ x 24″ thru 72″ x 96″ in 6″ and 12″ increments
- Welded steel construction
- Legs and braces welded and ground flush
- Tubing construction is 3″ x 3″ x 1/4″ up to 20 sq ft, any base over 20 sq. ft. would have 4″ x 4″ x 3/8″ tubing.
- Webbing under top plate, with dimensions of 6″ x 12″ reinforcement sections
- Thermal Stress relieved and shot blasted
- Standard top plate thickness of 1″, 1-1/2″, and 2″
- Top plate welded on and Blanchard ground to +/-.001 flatness cumulative
- Painted machine tool grey
Base Plate Options
- Stainless or Aluminum construction
- 4 x 4 x 3/8″ Tubing
- Bolted on Top Plate- includes blanchard ground top & bottom and top of webbing
- Lower shelf
- Electronic enclosures
- Panels & Formed Flush Doors
- Locking door latches
- Casters
- Levelers
- Fork Lift Tubes
- Coolant Trough
- Special Paint
- Power Coating
Top Plate Options
- Machining To Print
- Aluminum Top Plate
- Stainless Steel Top Plate
- Anodizing
- Nickel Plating
- Black Oxide
- Flash Chrome
- Mattison Grind
